The effects of Ozone Absorption in a Single Atmospheric Scattering model. Made with C++ and Vulkan.
Skip to content
Overview
The aim of this research is to investigate how incorporating an additional physical effect, such as ozone absorption, influences the perceived colour of the sky (as well as perceived realism), and how using different phase function approximations affects both the visual result and the computational performance of real-time rendering models.
More specifically, how does this additional physical effect influence the perceived color of the sky in a Single-Scattering Atmospheric Scattering Model. So in short, the question I sought out to answer was:
How does a single-scattering atmospheric scattering model compare visually and computationally when extended with ozone absorption and alternative phase function approximations?
Performance differences can be measured directly through profiling. Evaluating visual differences, however, is inherently subjective. To address this, a pairwise comparison survey was conducted where participants selected the more realistic image without knowing which model was used.
Process
The project is built on a physically-based single scattering model, implemented from scratch using Vulkan. Unlike many real-time approaches, this implementation avoids lookup tables and instead evaluates the scattering integrals directly in the shader using numerical integration.
Model
Rayleigh and Mie scattering are evaluated separately using numerical integration.
Ozone
Added as an absorption term, subtly shifting sky colour without scattering.
Integration
Midpoint sampling along the view ray, sample count controls quality vs cost.
Shader Flow
Vertex Shader
Performs numerical integration along the view ray & outputs accumulated Rayleigh and Mie scattering.
Fragment Shader
Applies phase functions & computes final colour contribution.
Post Processing
HDR rendering with exposure tone mapping.
Pairwise Comparison
Ozone
No Ozone
Ozone
No Ozone
Ozone
No Ozone
Results
Survey Findings
Blind pairwise comparison (44 participants)
- High sun: ozone preferred
- Low sun: non-ozone preferred
Performance
Ozone absorption and phase function selection introduce negligible overhead.
- Ozone absorption: minimal cost
- Phase function: negligible impact
Controls
Adjust Sample Count
Scattering parameter g
Sun Intensity
Exposure
Speed
Light Preset
Ozone Toggle
Phase Function Toggle
HDR
Movement
Rotation
Hover over an item
Description will appear here.
Images of Results

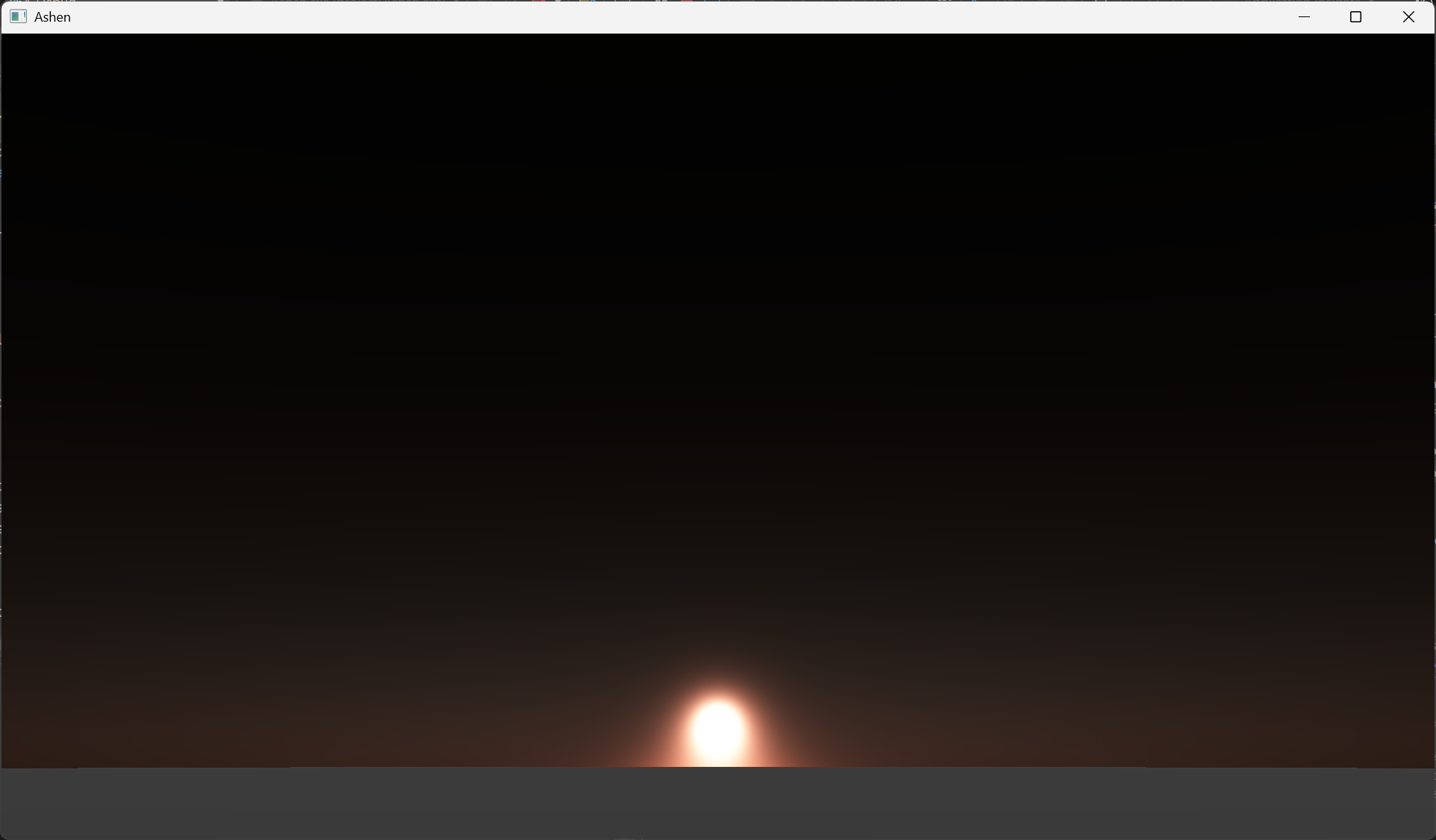

Sunset with Ozone

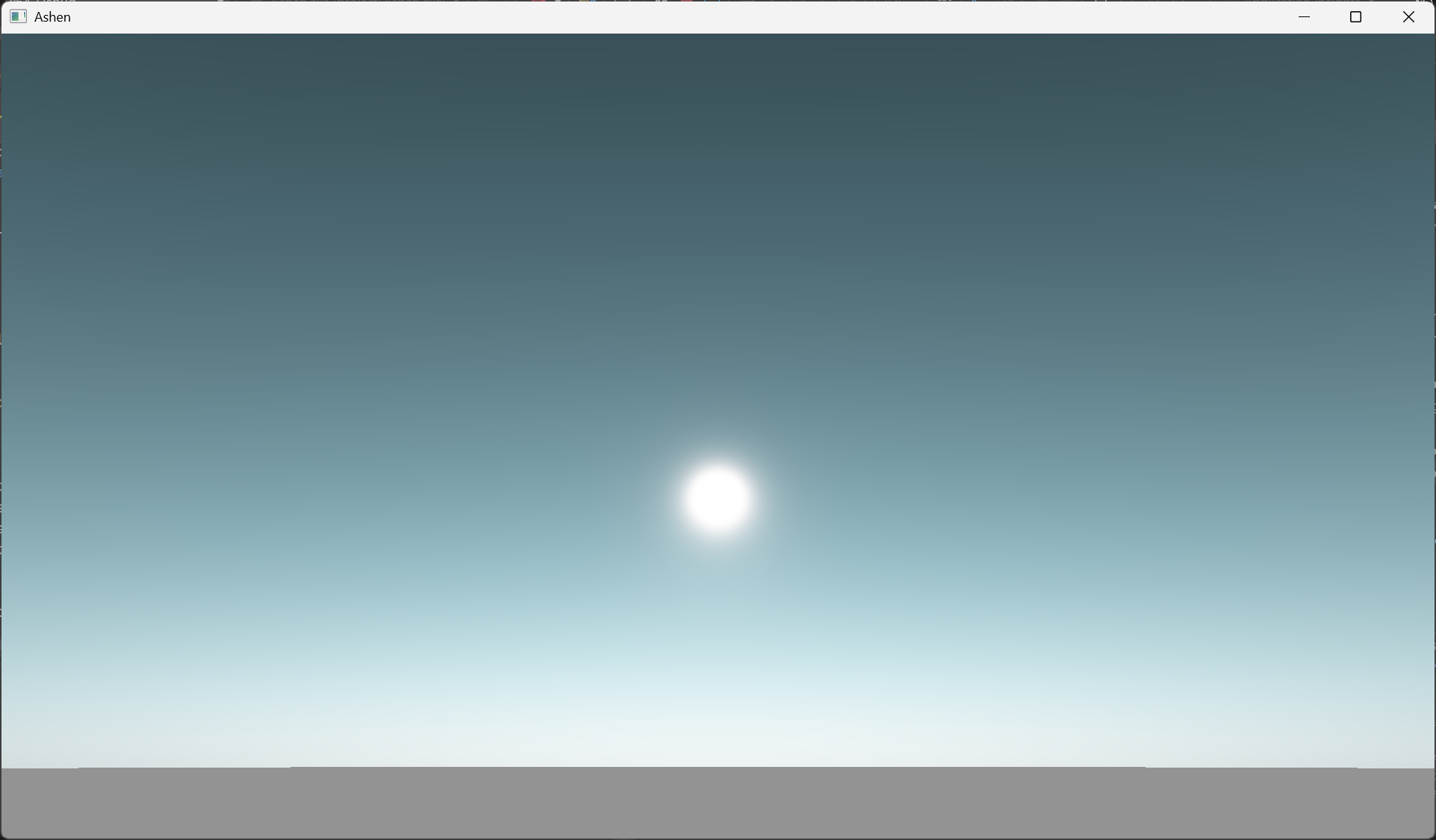

Late Morning with Ozone

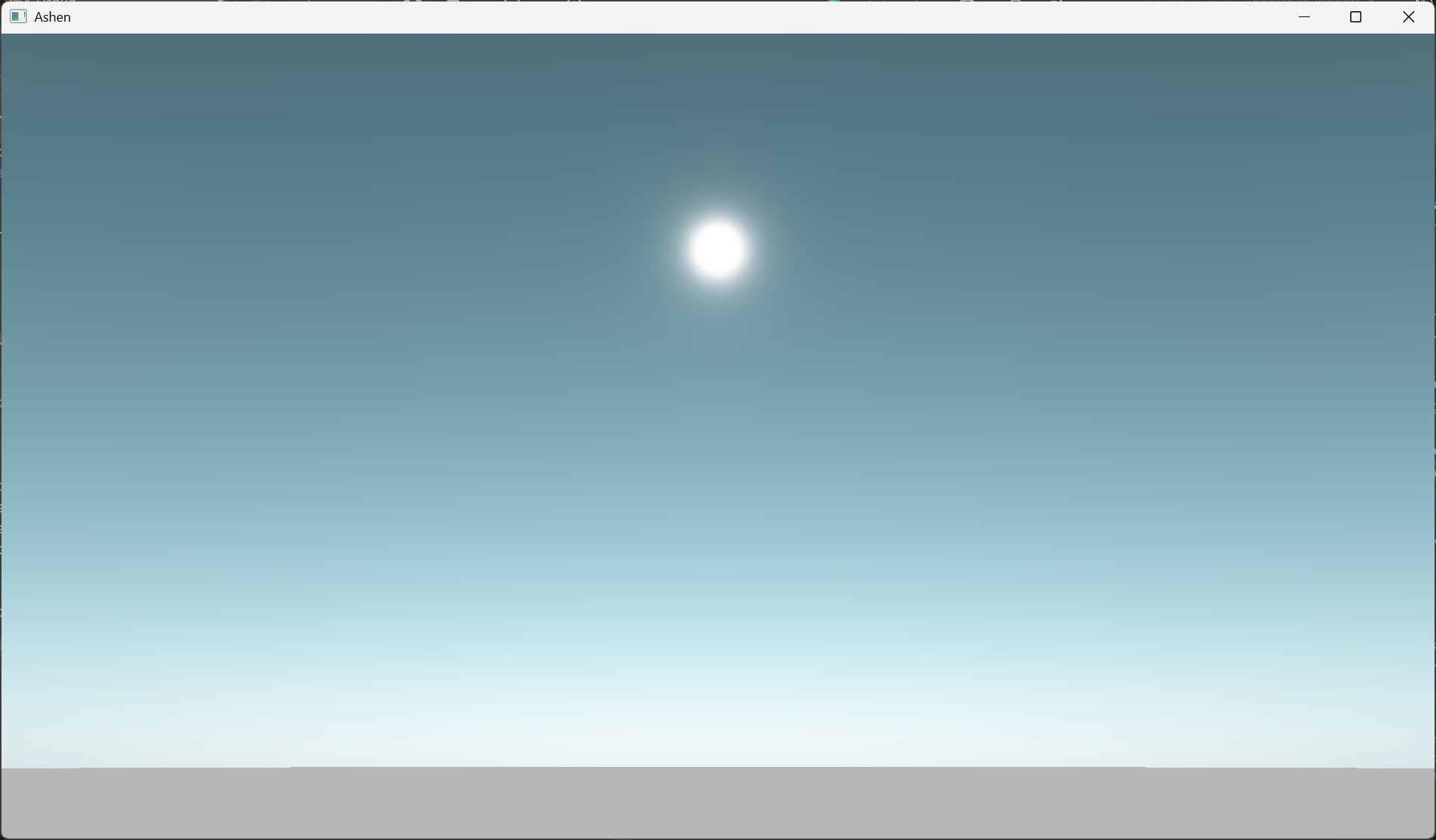

High Noon with Ozone

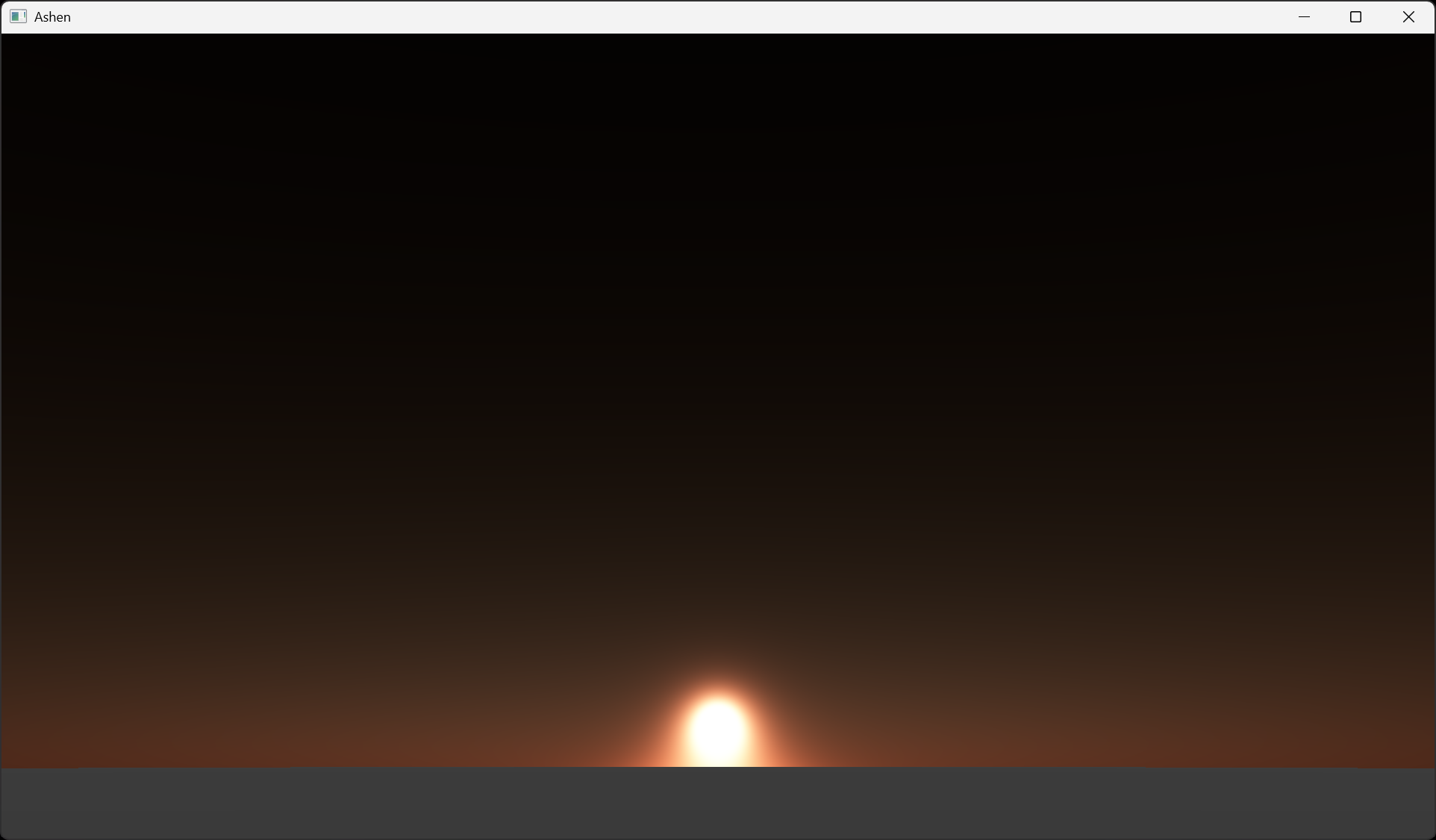

Sunset without Ozone

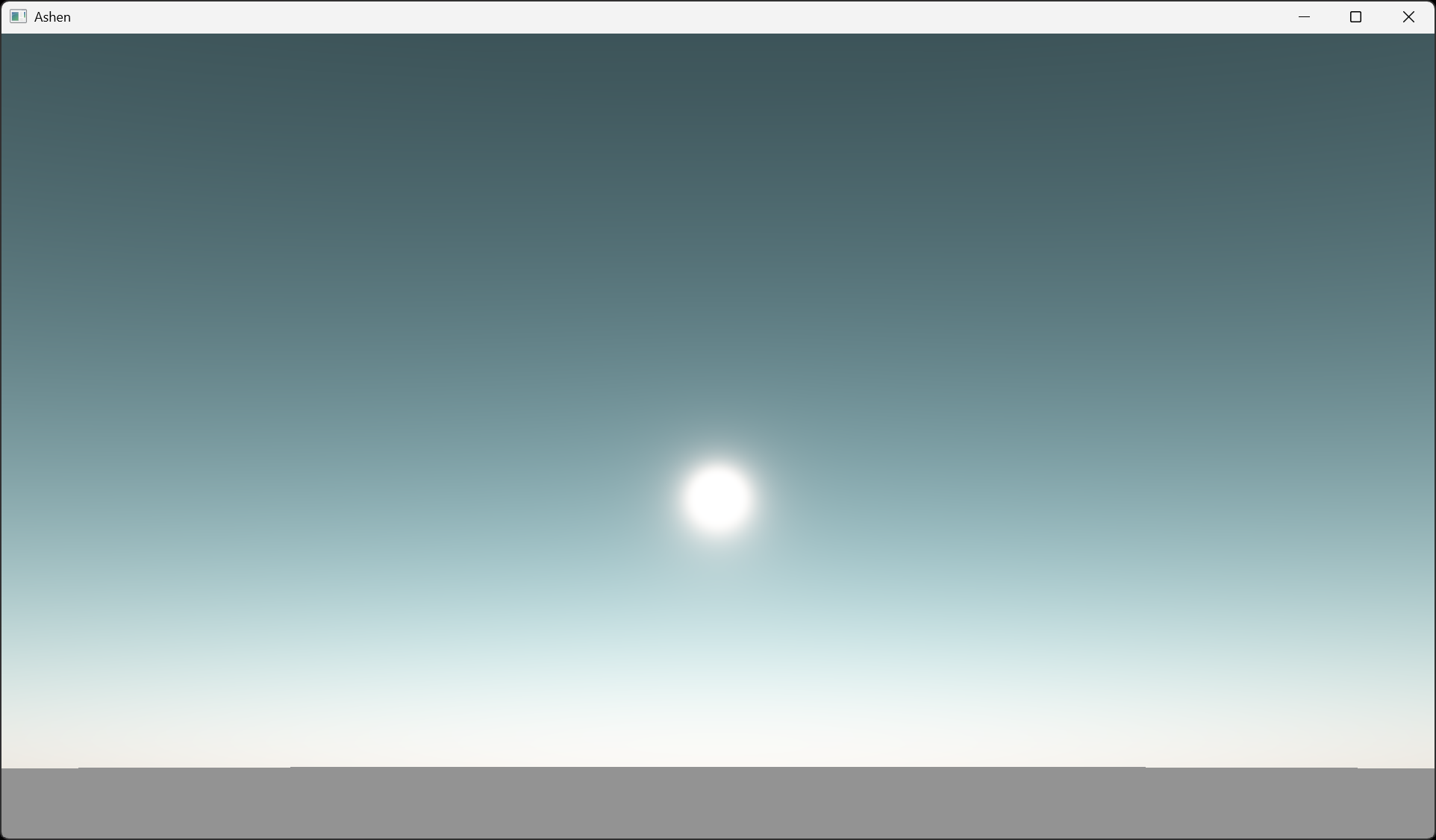

Late Morning without Ozone

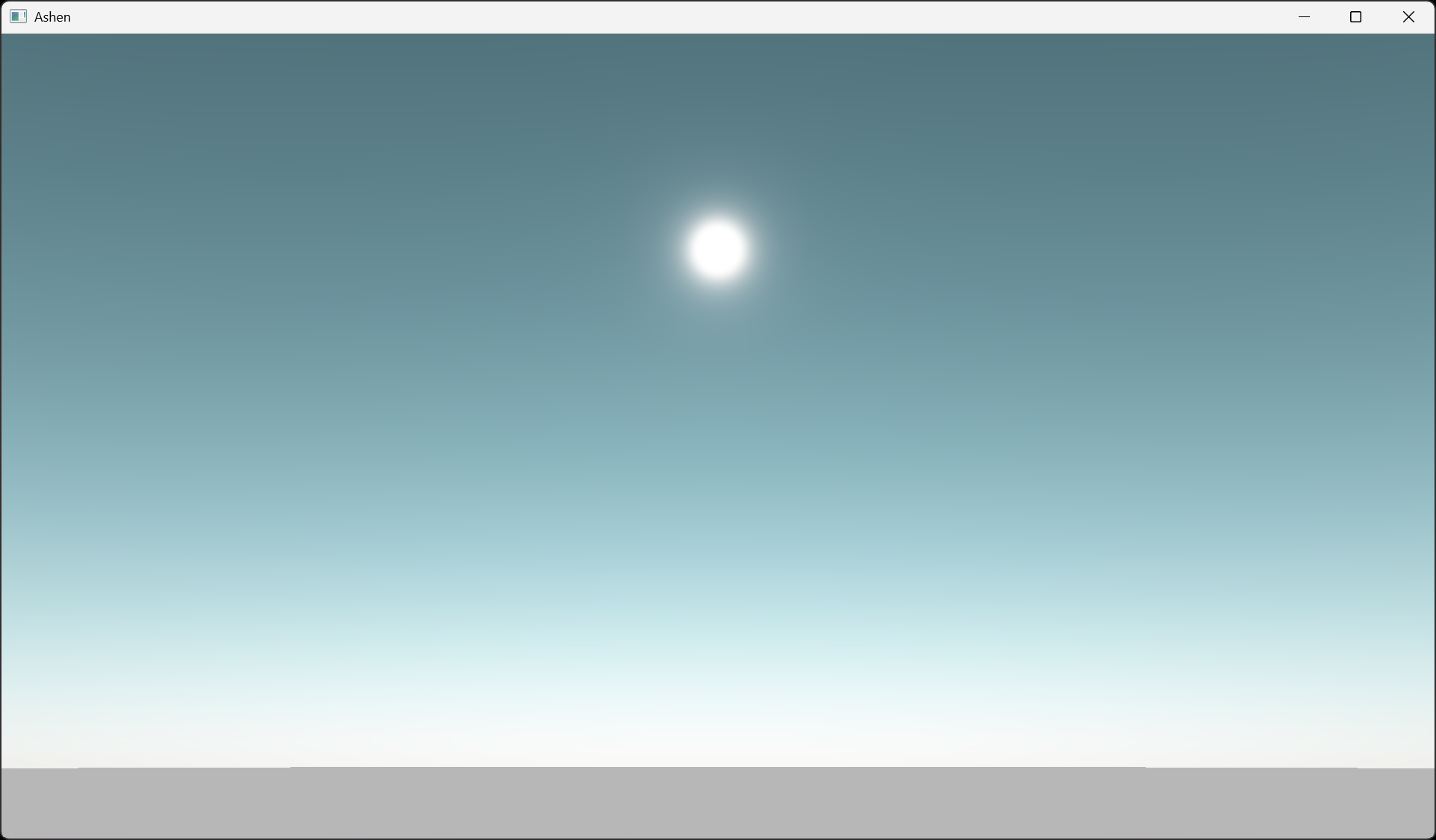

High Noon without Ozone
